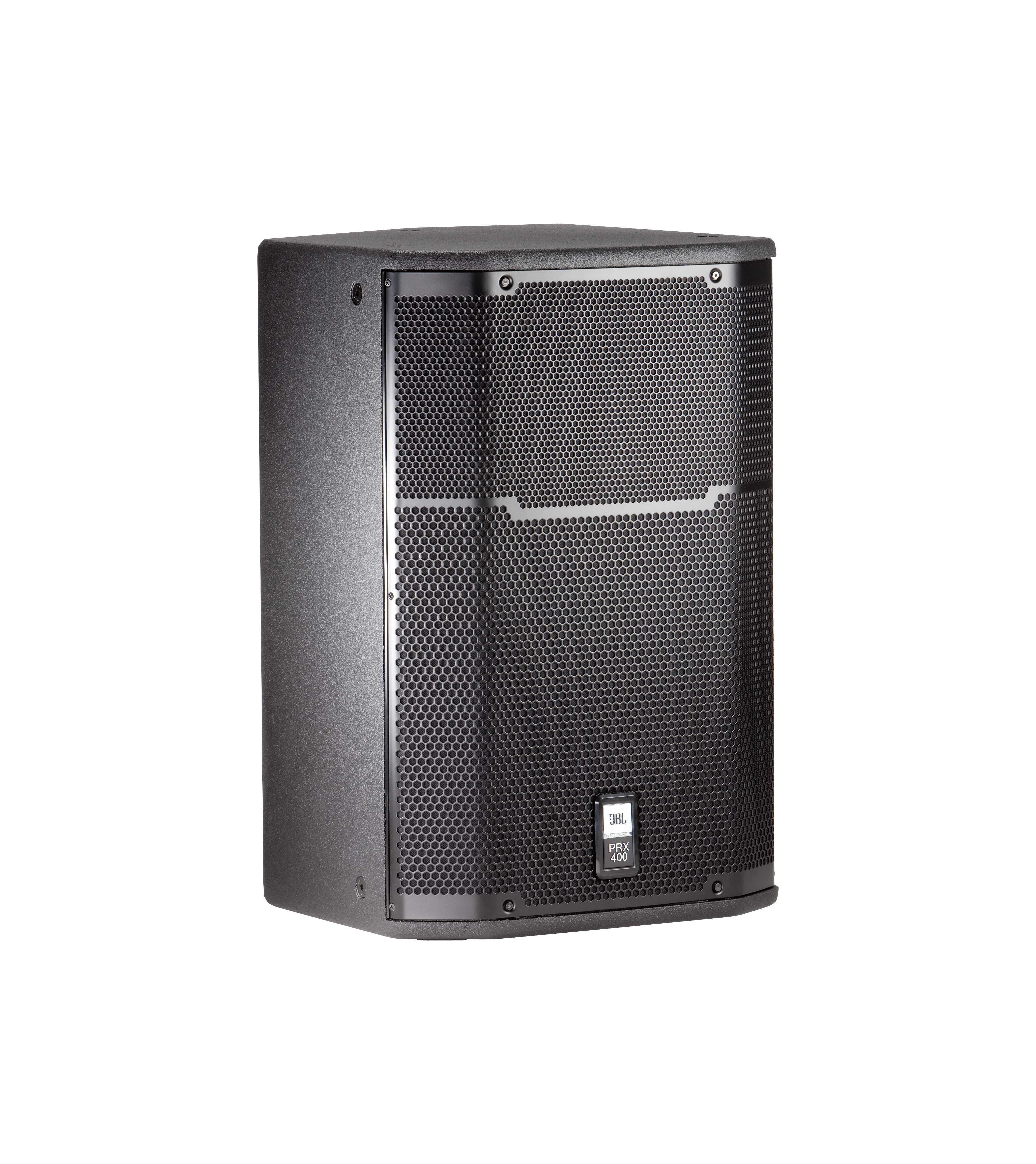

"PRX415M | 2-vägs topp/monitor, 15""/1.5"", 90X50"

JBL
8.363 kr
Artikelnummer: C800-02001


Våra partners


15" Two-Way Stage Monitor and Loudspeaker System

PRX415M is a portable, fifteen-inch, two-way speaker system designed for either main sound reinforcement or monitoring applications.





Features


  • 90° x 50° coverage
  • Dual-angle pole socket for applications requiring tripod mounting
  • Heavy Duty 16 gauge protective screen backed steel grille
  • Tough DuraFlex™ enclosure finish
  • SonicGuard™ protects the highfrequency driver from excess power without interrupting the performance.

Applications

  • Reinforcement of music and speech in entertainment, live or pre-recorded applications
  • High-performance satellite speaker for use with subwoofers




Downloads


 VersionLanguageSizeUploaded
Specifications
file type icon PRX415M Spec Sheet  1.26 MBApr 29, 2019
Brochures
file type icon PRX400 Brochure  991 KBJan 07, 2021
file type icon Portable Sound Full Line 2015 Catalog  2.54 MBOct 22, 2020
Compliances
file type icon PRX400 Series Declaration of Conformity  144 KBOct 22, 2020
Images
file type icon PRX415 Front Angle  2.94 MBApr 29, 2019
file type icon PRX415 fr Angle No Grill  2.5 MBApr 29, 2019
Speaker Tunings
file type icon PRX400 Series Tunings  41.2 KBOct 22, 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.



Specifications


Frequency Range (-10dB)55 Hz – 19 kHz
Frequency Response (±3 dB)66 Hz – 16 kHz
Coverage Pattern90° x 50° nominal
System Sensitivity98 dB SPL (1w@1m)
Power Rating, Pink Noise300 W / 600 W / 1200 W(Continuous/Program/Peak)
Maximum SPL (1m)122 dB SPL cont. (129 dB SPL peak)
Nominal Impedance8 ohms
Dimensions (H x W x D)650 mm x 429 mm x 457 mm (25.6" x 16.9" x 18")
Net Weight21 kg (46 lbs.)
InputsParallel Neutrik® Speakon® NL-2 / ¼" phone combo jacks
EnclosureDuraflex coated plywood
